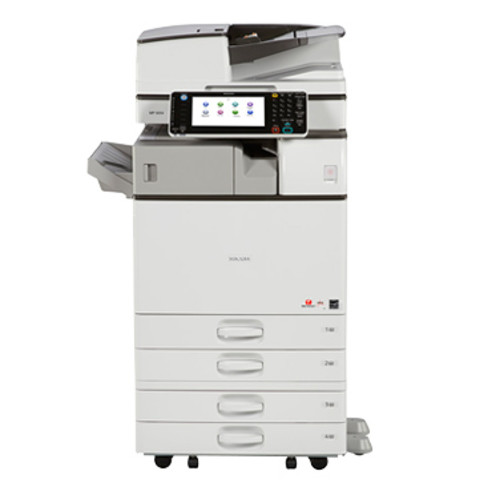

Ricoh MP 5054

Ricoh MP 5054


Manage information effortlessly from wherever you're working



Speed up information flow using the MP 5054 Black and White Laser Multifunction Printer (MFP), which comes with time-saving capabilities like scan-to and print-from-USB, shortcuts for frequent tasks, high-speed scanning and support for mobile printing.
  • Copy
  • Print
  • Scan
  • Fax
  • Characteristics

    General Features

    • Discover what "effortless" means to your workgroup
      Share information faster by using familiar, intuitive smart phone or tablet actions on the MP 5054 Black and White Laser Multifunction Printer (MFP)’s optional Super VGA smart operation panel. You can simplify routine actions like printing, copying, scanning and faxing with motions like drag and drop, pinch and flick, and scroll by swiping.
    • Remotely manage your printer fleet with @Remote. This internet-based tool lets you monitor your device usage, automate meter reads and toner alerts, and quickly alert your service provider of problems to shorten downtime and improve service.
    • Keep important information confidential
      When it's essential to restrict access to information on a "need to know" basis, let the RICOH MP 5054 help you:
      • Use PDF encryption to scramble data.
      • Swipe an authorized ID card on the optional card reader, or enter a pass code on the operation panel to release documents stored on the MFP.
      • Add watermarks and mask copy when unauthorized users try to copy documents.
    • Embrace information mobility
      Do more in less time with the help of this high-speed multitasking MFP ― for example: • Scan invoices to your mailbox.
      • Print from a USB drive.
      • Print important documents and fax them to coworkers or clients.
      • Copy the monthly sales report.
    • Stay close to the office wherever you are
      You're on the road, but you won't lose your connection to the information you need. The MFP integrates with Ricoh's optional HotSpot Enterprise, so you can print directly to it. Or, use the RICOH Smart Device Connector app to access the copy, print, scan and fax capabilities of the MFP directly from your mobile device.
    • Scan in high speed
      With color or black-and-white scanning at up to 180 images per minutes, you can meet tight deadlines with confidence. And, and you can save time when you need to find information fast by creating keyword-searchable PDF files using the optional optical character recognition (OCR) scanning feature.
    • Manage your information in the cloud
      Skip the expense of servers, equipment and maintenance by using Ricoh's Integrated Cloud Environment (ICE). You can send emails with attachments directly to the MFP, for example, without downloading print drivers.
    • Support your sustainability pledge
      Conserve energy while you create and share information. The ENERGY STAR®-certified MFP offers best-in-class typical electricity consumption (TEC) value and meets the criteria for EPEAT™ Gold, a global environmental rating system.
    • Add an extra layer of protection
      Store information on the MFP knowing you have a backstop. The DataOverwriteSecurity System (DOSS) renders images and data on the hard drive unreadable, automatically.
    • Work how you want to work
      Fly through tasks at the MFP using shortcuts — just touch an icon on the home screen. You can even add third-party software to simplify content management and other business tasks. To enable faster access by workers in your company, use the optional GlobalScan™ NX to convert paper documents into digital files.
  • Specifications

    Engine/Copier Specifications

    Scanning Element   One Dimension solid scanning through CCD

    Printing Process   Twin Laser Beam Scanning & Electrophotographic Printing

    Toner Type   Dry, Dual Component

    Copy Resolution   600 x 600 dpi

    Maximum Copy Quantity   Up to 999

    First Page Out Time   2.9 Seconds for MP 5054/MP 6054

    Warm-Up Time   14 seconds with Standard Operation Panel

    Recovery Time From Sleep Mode   4.9 seconds

    Memory (Standard/Maximum)   2 GB RAM + 320 GB HDD (Shared)

    Original Type   Book/Sheet/Object

    Maximum Original Size   Up to 11" x 17"

    Print Speed (Letter)   MP 5054: 50 prints/minute

    Power Source   120V/60Hz/12A

    Typical Electricity Consumption (TEC)**   MP 5054: 2.2 kWh/week

    Standard Paper Capacity   1,200 sheets (550 sheets x 2 trays, and 100-Sheet Bypass Tray)

    Maximum Paper Capacity   4,700 sheets (w/Tandem LCT + Side LCT)

    Supported Paper Types   Plain Paper, transparencies*, etterhead, Color Paper, Pre-Punched Paper, Labels*, Envelopes, Cardstock, Recycled, Preprinted Paper, Bond Paper

    Supported Paper Sizes   Bypass Tray: 5.5" x 8.5" – 12" x 18" (A6 – A3)
    Tray 1 & 2: 5.5" x 8.5" – 11" x 17" (A6 – A3)

    Supported Paper Weights   Duplex: 14 – 68 lb. Bond (52 – 256 g/m2)
    Bypass: 14 – 80 lb. Bond (52 – 300 g/m2)
    Tray 1 & 2: 16 – 80 lb. Bond (60 – 300 g/m2)

    Standard Output Capacity   500 sheets

    Maximum Output Capacity   3,625 sheets (Bridge Unit + 1 Bin + 3,000-Sheet Finisher)

    Document Feeder Type   Single Pass Document Feeder (SPDF)

    Document Feeder Original Size   5.5" x 8.5" – 11" x 17" (A5 – A3)

    Document Feeder Paper Weight   Simplex: 11 – 34 lb. Bond (40 – 128 g/m2)
    Duplex: 14 – 34 lb. Bond (52 – 128 g/m2)

    Document Feeder Capacity   220 sheets

    Preset Reduction and Enlargement Ratios   25%, 50%, 65%, 73%, 78%, 85%, 93%, 100%, 121%, 129%, 155%, 200%, 400%

    Zoom Range   25% to 400% in 1% increments

    Standard Features   Auto Paper Select, Auto Tray Switch, Booklet/Magazine Copy, Center/Border Erase, Chapters, Combine Mode, Cover Insertion, Document Server (3,000 File Capacity), Duplex, lectronic/Rotate Sorting, Full-Color VGA Touch Screen Control Panel, ID Card Copy, 8 Job Presets, 25 Job Programs, Negative/Positive, OHP Slip Sheet, Sample Copy, Series Copy, Simple Screen, 1,000 User Codes, User Stamps

    Dimensions (WxDxH) (includes ARDF)   23.1" x 26.8" x 37.9" (587 x 680 x 963 mm)

    Weight   163.1 lbs., 74 kg

    *Bypass Tray only
    **Typical electricity consumption by ENERGY STAR program


    Print Specifications

    Processor Speed   533MHz

    Connection Type   Standard: 10Base-T/100/1000BaseTX Ethernet, USB2.0 Type A (2 ports on back of device, 1 port on Operation Panel), SD slot on Operation Panel, USB2.0 Type B
    Optional: IEEE 802.11a/b/g/n Wireless LAN, USB Device Server (second NIC), & IEEE 1284 Parallel

    Network Protocol   TCP/IP (IPv4, IPv6), IPX/SPX*

    Supported Operating Systems   Windows Vista/7/8/XP, Windows Server 2003/2003R2/2008/2008R2/2012/2012R2;
    Netware* 6.5 or later, Unix Filters for Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linux, IBM AIX, Mac OS X 10.6 or later, SAP R/3, NDPS Gateway, IBM iSeries/AS/400® using OS/400 Host Print Transform, Citrix Presentation Server 4.5/Citrix Xen App 5.0, 6.0, 6.5

    Device Management Utilities   Web Image Monitor, Embedded @Remote, @Remote Office Appliance, @Remote Enterprise Pro, Device Manager NX Lite and Accounting, Device Manager NX Pro and Enterprise, @Remote Connector NX

    Printer Languages   Standard: PCL5e/6, Optional: Adobe PostScript 3®, IPDS & XPS

    Print Resolution   Up to 1200 x 1200 dpi

    Font Support   PCL5e/6: 45 Scalable Fonts, 13 International Fonts
    PS3: 136 Roman Fonts (optional)
    IPDS: 108 Roman Fonts (optional)

    Standard Features   Sample/Locked/Hold/Stored Print

    *Requires optional SD Card for Netware


    Scanner Specifications

    Scanning Speed   BW: 61 ipm (@200 dpi, 8.5" x 11" LEF)
    FC: 31 ipm (@200 dpi)

    Scanning Resolution   Up to 600 dpi

    Grayscale   256 levels

    Scan Area   Up to 11" x 17"

    Standard Interfaces   10BaseT/100BaseTX Ethernet

    Optional Interfaces   Wireless LAN (802.11a/b/g), Gigabit Ethernet

    Protocol   TCP/IP, SMTP, SMB, FTP, POP3, NCP**

    **Requires Netware and Print/Scan Options

    Memory Capacity   Shared with Copier Memory

    Standard Features   Embedded Scan-to-Email, HDD, Folder, URL, Color Scanning

    File Formats   Single-Page and Multi-Page TIFF, PDF, High Compression PDF, Single-Page JPEG, Single and Multiple page PDF/A


    Fax Specifications (Option)

    Circuit   PSTN, PBX

    Compatibility   ITU-T G3

    Resolution   200 x 200/100 dpi (Standard)
    400 x 400 dpi (Optional)

    Compression Method   MH, MR, MMR, JBIG

    Scanning Speed (LEF)   Up to 68 spm (Letter/A4)

    Modem Speed   33.6 Kbps with Auto Fallback

    Transmission Speed   G3: 3 seconds per page (MMR Compression)
    G3: 2 seconds per page (JBIG Compression)

    SAF Memory   4 MB standard/60 MB maximum 320 pages/4,800 pages

    Max Auto Dials   2,000

    Group Dials   100 (max. 500 numbers per group)

    Standard Features   Dual Access, Duplex Reception, Image Rotation, 1 Hour Backup, LAN-Fax Capability, Internet Faxing (T.37), IP Faxing (T.38), Fax Forwarding to E-Mail/HDD/Folder

    Optional Features   Simultaneous operation of up to 3 lines (G3 x 3)


    Security Features

        HDD Encryption, HDD Data Overwrite, Quota Limit Setting, SMTP over SSL, S/MIME, IPsec Communication, Locked Print Password Encryption, Encrypt Address Book, SSL Secure Socket Layer, Windows/LDAP/User Authentication, SNMP v3, Encryption of Password PDF, Encrypted PDF, IP Filtering
  • Accessories

    One-Tray Paper Bank (PB3150)1 5 (Option)

    Paper Capacity   550 sheets x 1 tray

    Supported Paper Sizes   5.5" x 8.5" to 11" x 17" (A5 – A3)

    Supported Paper Weight   16 – 80 lb. Bond/166 lb. Index (60 – 300 g/m2)

    Dimensions (WxDxH)   23.1" x 27" x 4.7" (587 x 685 x 120 mm)


    Two-Tray Paper Bank (PB3220)1

    Paper Capacity   1,100 sheets (550 sheets x 2 trays)

    Supported Paper Sizes   5.5" x 8.5" to 11" x 17" (A5 – A3)

    Supported Paper Weight   16 – 80 lb. Bond/166 lb. Index (60 – 300 g/m2)

    Dimensions (WxDxH)   23.1" x 27" x 9.7" (587 x 685 x 247 mm)


    Tandem Large Capacity Tray (PB3230)1

    Paper Capacity   2,000 sheets (1,000 sheets x 2)

    Supported Paper Sizes   8.5" x 11" (A4)

    Supported Paper Weight   16 – 80 lb. Bond/166 lb. Index (60 – 300 g/m2)

    Dimensions (WxDxH)   23.1" x 27" x 9.7" (587 x 685 x 247 mm)


    Side Large Capacity Tray (RT3030)4

    Paper Capacity   1,500 sheets

    Supported Paper Sizes   8.5" x 11" (A4)

    Supported Paper Weight   16 – 80 lb. Bond/166 lb. Index (60 – 300 g/m2)

    Dimensions (WxDxH)   13.4" x 21.4" x 11.4" (340 x 545 x 290 mm)


    Cabinet Type F1

    Dimensions (WxDxH)   23.1" x 26.7" x 10" (586 x 679 x 256 mm)

    Weight   Less than 29.3 lbs. (13.25 kg)


    Internal Shift-Sort Tray (SH3070)2

    Paper Capacity   250 sheets (8.5" x 11" or smaller) (A4 – A5)
    125 sheets (8.5" x 14" or larger) (B4 – A3)

    Supported Paper Sizes   5.5" x 8.5" to 12" x 18" (A6 – A3)

    Supported Paper Weight   14 – 80 lb. Bond/166 lb. Index (52 – 300 g/m2)


    SR3090 Finisher (Option)

    Paper Size   5.5" x 8.5" – 11" x 17"/A5 – A3

    Paper Weight   5.5" x 8.5" – 11" x 17"/A5 – A3
    14 to 69 lb. Bond/52 to 260 g/m2 (Proof Tray)
    14 to 43 lb. Bond/52 to 163 g/m2 (Shift Tray)

    Stack Capacity   Proof Tray: 250 sheets (8.5" x 11" or smaller); 50 sheets (8.5" x 14" or larger)
    Shift Tray: 1,000 sheets (8.5" x 11" or smaller); 500 sheets (8.5" x 14" or larger)

    Staple Capacity   50 sheets (8.5" x 11")
    30 sheets (8.5" x 14" or larger)

    Staple Position   1 staple/2 positions; 2 staples/1 position

    Dimensions   10.7" (W) x 20.5" (D) x 31.2" (H) (270 x 520 x 790 mm)


    Bin Tray (BN3110)

    Supported Paper Sizes   5.5" x 8.5" to 11" x 17" (A6 – A3)

    Supported Paper Weight   14 – 80 lb. Bond/166 lb. Index (52 – 300 g/m2)

    Paper Capacity   125 sheets


    500-Sheet Internal Finisher (SR3130)2 6

    Supported Paper Sizes   5.5" x 8.5" – 12" x 18" (A6 – A3)

    Supported Paper Weight   14 – 80 lb. Bond/166 lb. Index (52 – 300 g/m2)

    Stack Capacity   500 sheets (8.5" x 11" or smaller) (A4)
    250 sheets (8.5" x 14" or larger) (B4 – A3)

    Staple Paper Size   8.5" x 11" to 11" x 17" (A4 – A3)

    Staple Paper Weight   14 – 28 lb. Bond (52 – 105 g/m2)

    Staple Capacity   50 sheets (8.5" x 11") (A4)
    30 sheets (8.5" x 14" or larger, and/or Mixed Sizes) (B4 – A3)

    Staple Positions   Top, Bottom, 2 Staples

    Dimensions (WxDxH)   21.5" x 20.6" x 6.7" (546 x 523 x 170 mm)


    2-/3-Hole Punch Unit (PU3040NA)

    --   (Optional; Installs inside SR3130 Internal Finisher)


    1,000-Sheet Finisher (SR3140)2 3 4

    Supported Paper Sizes   Proof Tray: 5.5" x 8.5" – 11" x 17" (A6 – A3)
    Shift Tray: 5.5" x 8.5" – 11" x 17" (A6 – A3)

    Stack Capacity   Proof Tray: 250 sheets (8.5" x 11") (A4)
    50 sheets (8.5" x 14" or larger) (B4)
    Shift Tray: 1,000 sheets (8.5" x 11") (A4)
    500 sheets (8.5" x 14" or larger) (B4)

    Staple Capacity   50 sheets (8.5" x 11") (A4)
    30 sheets (8.5" x 14" or larger) (B4)

    Staple Paper Size   8.5" x 11" – 11" x 17" (A4 – A3)

    Staple Paper Weight   14 – 28 lb. Bond (52 – 105 g/m2)

    Staple Positions   Top, Bottom 2 Staples

    Dimensions (WxDxH)   22.2" x 24.4" x 37.8" (563 x 620 x 960 mm)


    1,000-Sheet Booklet Finisher (SR3150)2 3 4

    Supported Paper Sizes   Proof Tray: 5.5" x 8.5" – 11" x 17" (A6 – A3)
    Shift Tray: 5.5" x 8.5" – 11" x 17" (A6 – A3)
    Booklet Tray: 8.5" x 11" – 11" x 17" (A4 – A3)

    Supported Paper Weight   Proof Tray: 14 – 45 lb. Bond (52 – 169 g/m2)
    Shift Tray: 14 – 80 lb. Bond/166 lb. Index (52 – 300 g/m2)
    Booklet Tray: 14 – 28 lb. Bond (52 – 105 g/m2)

    Stack Capacity   Proof Tray: 250 sheets (8.5" x 11" or smaller)(A4)
    50 sheets (8.5" x r/>14" or larger) (B4 – A3)
    Shift Tray: 1,000 sheets (8.5" x 11" or smaller) (A4)
    500 sheets (8.5" x 14" or larger) (B4 – A3)
    Booklet Tray: 20 Sets (2 – 5 sheets), 10 Sets (6 – 10 sheets) & 7 Sets (11 – 15 sheets)

    Staple Capacity   Normal Staple: 50 sheets (8.5" x 11") (A4), 30 sheets (8.5" x 14" or larger) (B4 – A3) Saddle Stitch: 15 sheets

    Staple Paper   Size Normal Staple: 8.5" x 11" – 11" x 17" (A4 – A3)
    Saddle Stitch: 8.5" x 11" – 11" x 17" (A4 – A3)

    Staple Paper Weight   14 – 28 lb. Bond (52 – 105 g/m2)

    Staple Positions   Top, Bottom, 2 Staples, Booklet

    Dimensions (WxDxH)   22.2" x 24.4" x 37.8" (563 x 620 x 960 mm)


    2-/3-Hole Punch Unit (PU3050NA)

    --   (Optional; Installs inside SR3150 or SR3140 Finishers)


    SR3110 Booklet Finisher (2,000-Sheet Option)

    Paper Size   5.5" x 8.5" – 11" x 17"/A5 – A3

    Paper Weight   14 to 43 lb. Bond/52 to 163 g/m² (Proof Tray)
    14 to 68 lb. Bond/52 to 256 g/m² (Shift Tray)

    Stack Capacity   Proof Tray: 250 sheets (8.5" x 11" or smaller); 50 sheets (8.5" x 14" or larger)
    Shift Tray: 2,000 sheets (8.5" x 11") LEF 1,000 sheets (8.5" x 11" – 11" x 17") SEF 100 sheets (5.5" x 8.5")

    Staple Capacity   50 sheets (8.5" x 11")
    30 sheets (8.5" x 14" or larger)

    Staple Position   1 staple/3 positions; 2 staples/2 positions

    Saddle Stitch   30 sets (2 – 5 sheets); 15 sets (6 – 10 sheets); 10 sets (11 – 15 sheets)

    Dimensions   25.9" (W) x 25.1" (D) x 37.8" (H) (657 x 613 x 960 mm)


    2,000-Sheet Booklet Finisher (SR3170)2 3 4

    Support Paper Sizes   Proof Tray: 5.5" x 8.5" to 12" x 18" (A6 – A3)
    Shift Tray: 5.5" x 8.5" to 12" x 18" (A6 – A3)
    Booklet Tray: 8.5" x 11" to 12" x 18" (A4 – A3)

    Support Paper Weight   Proof Tray: 14 – 58 lb. Bond (52 – 220 g/m2)
    Shift Tray: 14 – 80 lb. Bond/166 lb. Index (52 – 300 g/m2)

    Stack Capacity   Proof Tray: 250 sheets (8.5" x 11" or smaller) (A4) 50 sheets (8.5" x 14" or larger) (B4)
    Shift Tray: 2,000 sheets (8.5" x 11" LEF)(A4 LEF) 1,000 sheets (11" x 17" SEF, 8.5" x 13" SEF, 8.5" x 11" SEF, 12"x 18" SEF) (A3 SEF, A4 SEF) 500 sheets (A5 LEF) 100 sheets (5.5" x 8.5" SEF) (A5 SEF, A6 SEF)
    Booklet Tray: 30 sets (2 – 5 sheets) or 15 sets (6 – 10 sheets) or 10 sets (11 – 15 sheets) or 6 sets (16 – 20 sheets)

    Staple Capacity   Normal Staple: 50 sheets (8.5" x 11" to 11" x 17" and Mixed Sizes) (A4 – A3)
    Saddle Stitch: 20 sheets

    Staple Paper Size   Normal Staple: 8.5" x 11" to 11" x 17" (A4 – A3)
    Saddle Stitch: 8.5" x 11" to 12" x 18" (A4 – A3)

    Staple Paper Weight   Normal Staple: 14 – 28 lb. Bond (52 – 105 g/m2)
    Saddle Stitch: 17 – 28 lb. Bond (64 – 105 g/m2)

    Staple Positions   Top, Bottom, 2 Staples, Top Slant, Booklet

    Dimensions (WxDxH)   25.9" x 24.1" x 37.8" (657 x 613 x 960 mm)


    3,000-Sheet Finisher (SR3160)2 3 4

    Support Paper Size   Proof Tray: 5.5" x 8.5" to 12" x 18" (A6 – A3)
    Shift Tray: 5.5" x 8.5" to 12" x 18" (A6 – A3)

    Supported Paper Weight   Proof Tray: 14 – 58 lb. Bond/122 lb. Index (52 – 220 g/m2)
    Shift Tray: 14 – 80 lb. Bond/166 lb. Index (52 – 300 g/m2)

    Stack Capacity   Proof Tray: 250 sheets (8.5" x 11" or smaller) (A4)
    50 sheets (8.5" x 14" or larger) (B4)
    Shift Tray: 3,000 sheets (8.5" x 11" LEF) (A4 LEF)
    1,500 sheets (11" x 17" SEF, 8.5" x 13" SEF, 8.5" x 11" SEF, 12" x 18" SEF) (A3 SEF, A4 SEF)
    500 sheets (A5 LEF)
    100 sheets (5.5" x 8.5" SEF) (A5 SEF, A6 SEF)

    Staple Capacity   50 sheets (8.5" x 11" to 11" x 17" or Mixed Sizes) (A4 – A3)

    Staple Paper Size   8.5" x 11" to 11" x 17" (A4 – A3)

    Staple Paper Weight   14 – 28 lb. Bond (52 – 105 g/m2)

    Staple Positions   Top, Bottom, 2 Staples, Top Slant

    Dimensions (WxDxH)   25.9" x 24.1" x 37.8" (657 x 613 x 960 mm)


    2-/3-Hole Punch Unit (PU3060NA)

    --   (Optional; Installs inside SR3160 or SR3170 Finishers)


    SR3120 Finisher (3,000-Sheet Option)

    Paper Size   5.5" x 8.5" – 11" x 17"/A5 – A3

    Paper Weight   14 to 43 lb. Bond/52 to 163 g/m²(Proof Tray)
    14 to 68 lb. Bond/52 to 256 g/m² (Shift Tray)

    Stack Capacity   Proof Tray: 250 sheets (8.5" x 11" or smaller); 50 sheets (8.5" x 14" or larger)
    Shift Tray: 3,000 sheets (8.5" x 11") LEF 1,500 sheets (8.5" x 11" – 11" x 17") SEF

    Staple Capacity   50 sheets (8.5" x 11")
    30 sheets (8.5" x 14" or larger)

    Staple Position   1 staple/3 positions; 2 staples/1 position

    Dimensions   25.9" (W) x 25.1" (D) x 37.8" (H) (657 x 613 x 960 mm)


    LCIT RT3020 Side Large Capacity Tray (Option)

    Paper Size   11" x 8.5"/A4 (LEF)

    Paper Weight   16 to 57 lb. Bond/60 – 216 g/m²

    Paper Capacity   1,200 sheets

    Dimensions   13.7" (W) x 21.3" (D) x11.4" (H) (348 x 540 x 290 mm)


    PB3130 Paper Feed Unit (Option)

    Paper Size   7.25" x 10.5" – 11" x 17"/Executive – A3

    Paper Weight   16 to 57 lb. Bond/60 – 216 g/m@sup2;

    Paper Capacity   550 sheets x 2

    Dimensions   22.8" (W) x 24.8" (D) x 10.2" (H) (580 x 629 x 260 mm)


    LCIT PB3140 Large Capacity Tray (Option)

    Paper Size   8.5" x 11"/A4 (LEF)

    Paper Weight   16 to 57 lb. Bond/60 – 216 g/m²

    Paper Capacity   2,000 sheets

    Dimensions   22.8" (W) x 24.8" (D) x 10.2" (H) (580 x 629 x 260 mm)


    Additional Accessories

        Bridge Unit BU3070, Browser Unit Type M12, Card Reader Bracket Type 3352, Copy Data Security Unit Type G, Embedded HotSpot Type S, Fax Connection Unit Type M12, File Format Converter Type E, G3 Interface Unit Type M12, IEEE 1284 Interface Board Type A, IEEE 802.11a/b/g/n Interface Unit Type M2, IPDS Unit Type M12, Key Counter Bracket Type M3, Memory Unit Type M12 64MB, OCR Unit Type M2, Optional Counter Interface Unit Type M12, PostScript3 Unit Type M12, SD Card for NetWare Printing Type M12, Smart Card Reader Built-in Unit Type M12, Smart Operation Panel Type M3, XPS Direct Print Option Type M12, USB Device Server Option Type M12

    Note: Some accessories require additional equipment or may be prerequisites for other options. Some images contained in this brochure do not show the stabilizers that ship with the optional paper feed units.
    Some options may not be available at the time of market release.
    Specifications are subject to change without notice.
    For maximum performance and yield, we recommend using genuine Ricoh parts and supplies.
    --cont.--

    • 1 Cannot be installed together
    • 2 Cannot be installed together
    • 3 Requires Bridge Unit BU3070
    • 4 Requires installation of Two-Tray Paper Bank (PB3220) or Tandem LCT (PB3230)
    • 5 Requires installation of Caster Table Type M3
    • 6 Cannot be installed on MP 6054
