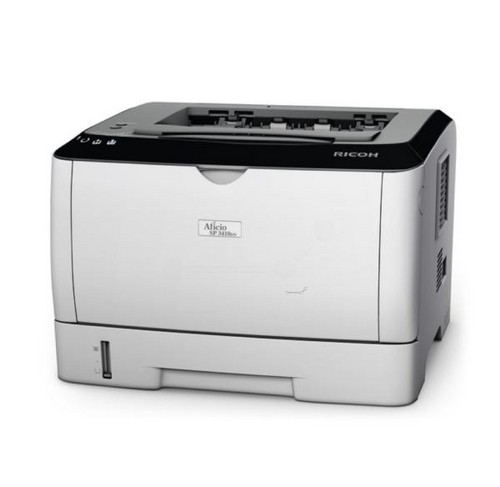

SP 3510DN

SP 3510DN

Discover the convenience of affordable network laser printing

Expect reliable everyday performance from your desktop printer, even when dealing with the unexpected. Choose the robust RICOH®Aficio® SP 3510DN for high-quality monochrome output at minimal cost. With efficient 30 page-per-minute output speeds, a fast warm-up time and an easy-to-view 2-line tilting LCD control panel, these printers are excellent choices for corporate workgroups, small businesses, and home offices with 8.5" x 14" monochrome printing needs. A choice of manual or automatic duplexing plus Ricoh's ultra-reliable All-In-One print cartridge technology rounds out the Aficio SP 3510DN rich feature set to easily meet the needs of cost-savvy businesses and professionals.
  • Print
  • Characteristics

    General Features

    • Efficient 30-ppm black & white output speed at 600 x 600 dpi and 1200 x 600 dpi resolutions.
    • True 1200 x 1200 dpi resolution (at 50% speed) for superior halftone and grayscale reproduction.
    • Powerful 295 MHz print controller quickly processes every file.
    • Standard 64 MB RAM quickly handles incoming data streams in popular PCL 6 or PostScript 3 emulations to keep the pages flowing.
    • Built on Ricoh's proven All-In-One (AIO) print cartridge technology for maximum uptime, consistent image quality, and ease of use.
    • Fast 20-second warm-up time for near-instant readiness and 8-second first print speed for quick job turnaround.
    • Network-ready with standard 10/100Base-TX Ethernet plus USB 2.0 Hi Speed interfaces.
    • Tilting 2-line LCD panel for improved operability, supply status display, and fault communication.
    • Latest Windows and Mac support plus UNIX Filter and Citrix tools for host- and distributed-print workflows.
    • Standard 250-sheet Paper Tray and 50-sheet Bypass accept stocks in size up to 8.5" x 14" and up to 90 lb. Index in weight.
    • Add one 250-sheet Paper Feed Unit to raise capacity to 550 sheets.
    • The SP 3510DN offers built-in automatic duplexing for productive two-sided printing. The more economical SP 3500N supports manual duplexing.
    • Familiar device management through Web Image Monitor plus new Printer Driver Packager NX support.
  • Specifications

    General Specifications

    Part #   406962

    Configuration   Desktop

    Technology   Laser beam scanning, electrophotographic printing using dry mono-component toner development

    Control Panel   2-line tilting monochrome LCD

    Print Resolution   600 x 600 dpi, 1200 x 600 dpi, 1200 x 1200 dpi (@ 50% productivity)

    Print Speed   30 pages-per-minute (Letter)

    First Print Speed   8 seconds or less

    Warm-Up Time   20 seconds or less

    Recovery Time from Energy Saver Mode   15 seconds or less

    Duplex   Automatic (@ 50% productivity)

    Standard Paper Supply   250-Sheet Tray + 50-Sheet Bypass

    Optional Paper Supply   250-Sheet Paper Feed Unit

    Maximum Paper Capacity   550 sheets

    Output Capacity   125 sheets (face down)

    Paper Sizes   Standard Paper Tray: Letter (8.5" x 11"), Legal (8.5" x 14"), Half Letter (5.5" x 8.5"), Executive (7.25" x 10.5"), F (8" x 13"), Folio (8.25" x 13"), Foolscap (8.5" x 13"), A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm); Custom Size: 3.9" x 5.8" to 8.5" x 14" (100 x 148 mm to 216 x 356 mm) Bypass Tray: Letter (8.5" x 11"), Legal (8.5" x 14"), Half Letter (5.5" x 8.5"), Executive (7.25" x 10.5"), A4 (210 x 297 mm), A5 (210 x 148 mm), A6 (105 x 148 mm); Envelopes: Com10, Monarch, C6, C5, DL; Custom Size: 3.6" x 5.8" to 8.5" x 14" (90 x 148 mm to 216 x 356 mm) Optional Paper Feed Unit: Letter (8.5" x 11"), Legal (8.5" x 14"), Half Letter (8.5" x 5.5"), A4 (210 x 297 mm), A5 (210 x 148 mm) When Duplexing (SP 3510DN only): Letter (8.5" x 11"), Legal (8.5" x 14"), A4 (210 x 297 mm)

    Paper Weights   Standard Paper Tray and Bypass Tray:
    14 – 43 lb. Bond/90 lb. Index
    (52 – 162 g/m²)
    Optional Paper Feed Unit: 16 – 28 lb. Bond (60 – 105 g/m²)
    When Duplexing (SP 3510DN only):
    16 – 28 lb. Bond (60 – 105 g/m²)

    Paper Types   Standard Tray: Plain Paper, Recycled Paper, Cardstock Bypass Tray: Plain Paper, Recycled Paper, Envelopes, Cardstock, Labels Optional Paper Feed Unit: Plain Paper, Recycled Paper

    Dimensions (W x D x H)   14.57" x 15.43" x 10.41"
    (370 mm x 392 mm x 262 mm)

    Weight   28 lb. (12.7 kg)

    Power Consumption   Maximum: 850W
    Energy Saver: less than 5W

    TEC Value   1.82 kWh/week

    Safety Regulations   UL60950-1, FCC47 CFR, Chapter 1, Part 15, Class B


    Print Controller

    CPU   295 MHz

    Memory   64 MB RAM standard/maximum

    Standard Interfaces   USB 2.0, Ethernet 10/100Base-TX

    Printer Languages/Drivers   PCL 5e¹, PCL 6, PostScript 3 emulation

    Fonts   PCL/PS 3 : 80 fonts

    Network Protocols   TCP/IP, IPP

    Operating Systems   Windows XP, Vista, 7, Server 2003, Server 2003/R2, Server 2008, Server 2008/R2 Mac OS 10.4v or later; Citrix MetaFrameXP, Citrix PresentationServer 3.0, 4.0 (32-bit only), 4.5, XenApp 5.0+; Ricoh UNIX Filter

    Advanced Printer Features*   Reduce/Enlarge Scaling, Locked Print, Collate, Layout (N-up), Duplex, Front Cover Sheet, Mirror Image Print, Dithering, Toner Saving, Watermark, User ID, User Code, Rotate Print, Reverse Order Print, Do Not Print Blank Page

    Software Utilities   Embedded: Web Image Monitor, @Remote²
    (limited support)
    Provided on CD-ROM: PCL 6 emulation driver, PS3 emulation driver, Printer Utility for Mac OS X (PPD)
    Available via Download from Website: Ricoh Universal Printer Driver, Ricoh Device Manager NX, Device Option Utility for Citrix, Ricoh UNIX Filter



    1. PCL 5e driver is not provided (controller can receive PCL 5e command from host).
    * Varies by active PDL/Driver.
    2. Counter information only.
  • Accessories

    Paper Feed Unit TK1080 – Part # 406496

    Capacity   250 sheets

    Paper Sizes   Letter (8.5" x 11"), Legal (8.5" x 14"), Half Letter (5.5" x 8.5"), A4, A5

    Paper Weights   16 – 28 lb. Bond (60 – 105 g/m²)

    Dimensions   14.6" x 15.1" x 3.5"
    (370 mm x 383 mm x 89 mm)

    Weight   Less than 5.3 lb. (2.4 kg)
